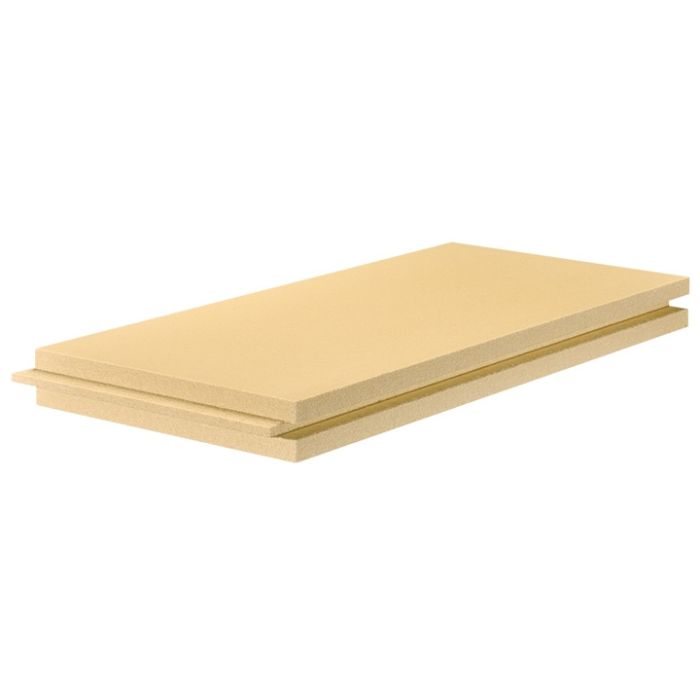

TOP 140 is a pressure-resistant, weatherproof insulation board and a rain-proof sarking board. Furthermore, TOP is also ideally suitable for weatherproof facade insulation on both-closed and ventilated curtain wall facades. The surface is equipped with an anti-slip latex coating. TOP 140 is weatherproof for up to 12 weeks’ outdoor exposure.
TOP 140 is a pressure-resistant, weatherproof insulation board and a rain-proof sarking board, classified as ZVDH class 3 (ZVDH = Federation of German Roofing Contractors). Furthermore, TOP is also ideally suitable for weatherproof facade insulation on both-closed and ventilated curtain wall facades. Due to the use of paraffin (wax), the best wood board is completely water-repellent. The surface is equipped with an anti-slip latex coating. TOP 140 is weatherproof for up to 12 weeks’ outdoor exposure. The application of nail sealing tapes is not necessary.
Is to be laid on pressure and joint free. Even the smallest joints have to be closed with best wood underlays-adhesive sealant UDB before installing the counter batten.
Store and install TOP 140 dry
The tongue faces roof ridge, cross joints are not allowed
Do not use TOP 180 statically or as load-bearing component
Do not install damaged boards!
Boards can only be walked on via the rafters
Each TOP board has to cover at least two rafters. The joint displacement per row has to be at least 1 rafter space.
Afterwards it has to be fixed immediately with the counter-batten.
The boards have to be installed rectangularly to the rafter
Connections on the roof ridge, covings, hips and penetrations have to be sealed with the suitable system components
Dust extraction in accordance with BG regulations
Installation elements or inlets (e.g. solar pipes ...), for which temperatures of > 80°C can be expected, must not be installed without any additional fire precautions into the best wood SCHNEIDER wood fiber insulation materials.
Please note the special processing guidelines for ON-ROOF INSULATION.
Increased strength in the outer area of the above-rafter insulation Due toour unique production process, our TOP can be used on both sides and we have two identical surfaces with increased strength. This results in less waste during installation.
Can be exposed to the weather for up to 12 weeks Temporary weatherproof on-roof insulation (for roof pitches of 15° and more, classified as ZVDH class 3)
Anti-slip latex coating On the surface with slip-resistant latex coating for more safety on the roof for your employees
