Getting Started - What is the Sublime Floor?

Tŷ-Mawr’s Sublime® floor system was designed with solid wall construction in mind, to mitigate the risks that are created when a damp proof membrane (DPM) is introduced to a building of traditional construction. The high performing technical properties of the materials mean this system is equally appropriate for new builds and extensions. Our full range of insulation systems are available in our Retrofit Brochure

The sublime® system comprises of two primary layers; the Glapor insulating gravel and the Limecrete slab. The minimum depth for the sublime® floor is 150mm for the Glapor and 100mm for the Limecrete, if a higher level of insulation is required the depth of Glapor can be increased. Please complete our on-line calculation form

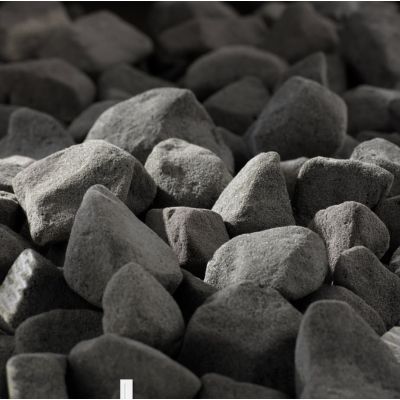

The Glapor recycled foamed glass gravel (RFG) is a high-performance gravel made from 100% recycled glass, it’s exceptional qualities allow it to provide 3 key functions in the construction of a ground bearing floor, this simplifies the construction build up which can significantly save on labour.

• Damp protection: Glapor RFG is a non-capillary material which provides a wicking break that prevents moisture movement through capillary action (how moisture moves through soil). This means the Glapor is able to provide damp protection for the Limecrete without introducing the problems that typically occur when introducing a conventional damp proof membrane (DPM) into a building of solid wall construction without a modern damp proof course (DPC)

• Insulation: Glapor RFG is a closed cell insulation that is formed from a large number of small air bubbles trapped in glass, this gives it a known thermal conductivity of 0.078W/mK which insulates the slab from the subsoil reducing heat loss.

• Structural hardcore: Glapor RFG is a structural hardcore with a tested compressive strength, which means it provides the necessary support for the Limecrete with no requirement for an additional Type1 / MOT subbase below.

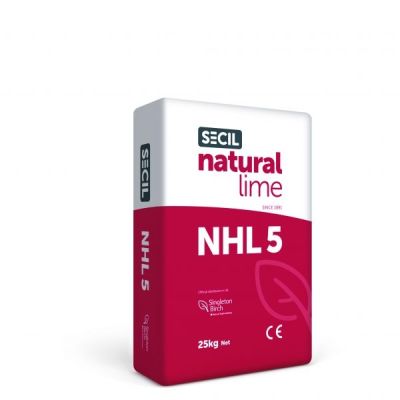

The Limecrete slab is an alternative to the conventional concrete slab made from a blend of natural hydraulic lime (NHL) and recycled aggregate with screed fibres, it provides a load-spreading element over the Glapor to distribute loads applied to the floor as well as providing thermal mass.

We are proud to be able to supply all the materials needed to complete a sublime® Insulated Limecrete Floor, please use our on-line calculation form to provide us the information required to calculate a U-value and the material quantities and you will be emailed a competitive quotation.
